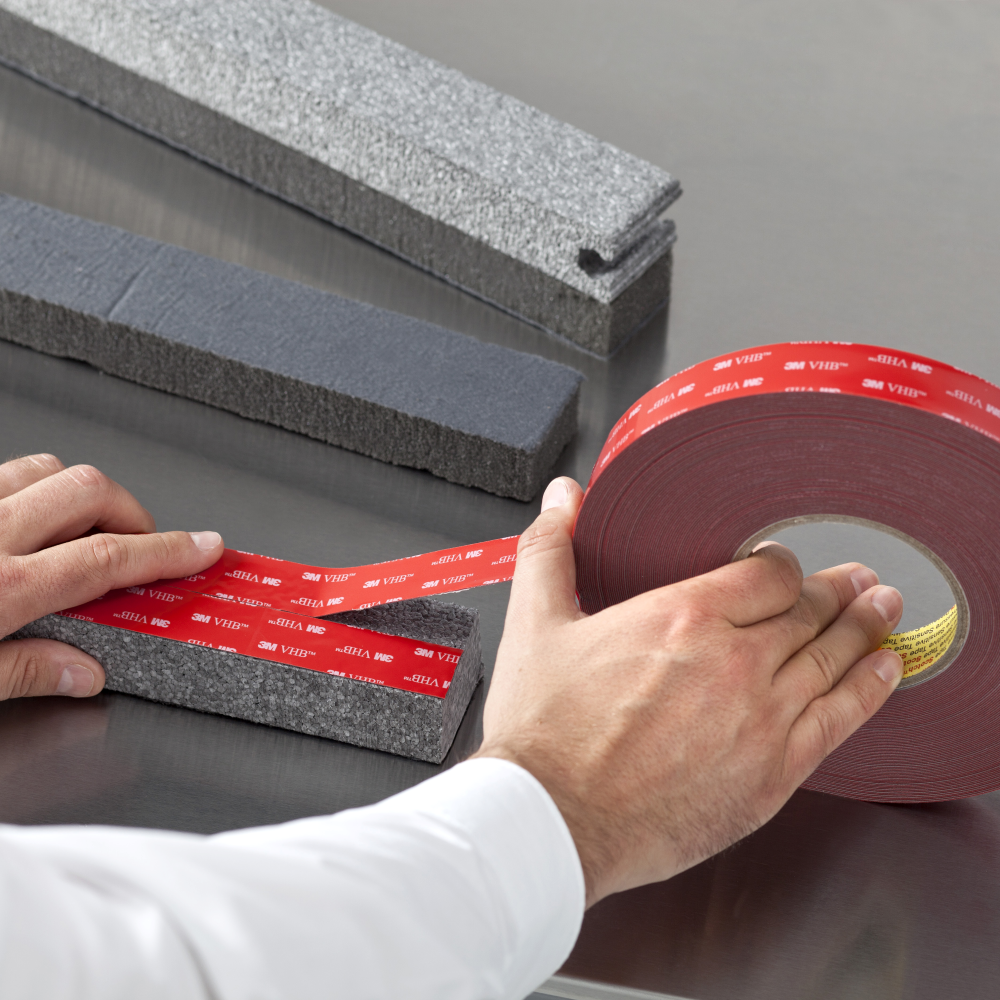

3M GPH-060GF Gray Double-Sided Tape (various sizes)

3M™ VHB™ GPH-060GF is a grey tape with a thickness of 0.6 mm, built on a flexible foam core and coated with a very strong acrylic adhesive. Designed for permanently joining various materials, it is perfectly suited for applications requiring high temperature resistance, such as powder coating processes. Ideal for both internal and external use.

Technical specifications:

• Colour: grey
• Thickness: 0.6 mm
• Width: 6 mm, 9 mm, 12 mm, 15 mm, 19 mm, 25 mm
• Length: 33 m
• Adhesive type: modified acrylic
• Carrier: flexible acrylic foam
• Temperature resistance: up to 230°C short-term
• Application: internal and external
• Sealing capability: resistant to moisture, water and contaminants

Application:

• Bonding metal elements before powder coating
• Mounting panels and stiffeners in industrial constructions
• Installation of nameplates, emblems, ornaments and trims
• Joining plastics (ABS, PVC), glass, aluminium and steel
• Production of household appliances, electronics and heating systems

Benefits and properties:

✅ High temperature resistance – ideal for processes involving paint curing
✅ Durable and fast bonding – eliminates the need for mechanical fasteners
✅ Versatility – adheres to many types of surfaces: metal, plastic, glass
✅ Excellent resistance to UV, moisture and aging – ideal for outdoor applications
✅ Easy application – cures at room temperature, without the need for cooling

Usage tips:

Before application, surfaces should be clean, dry and degreased. If necessary, it is recommended to use a 3M™ primer for better adhesion. To achieve full bond strength, the joined elements should be pressed firmly and left for a minimum of 72 hours. The process can be accelerated by heating.
