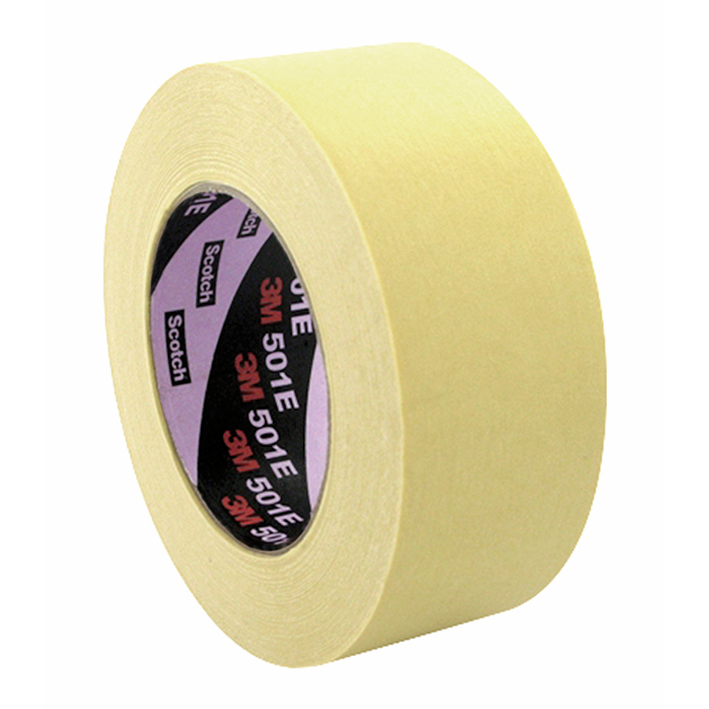

3M Masking Tape 501E (various variants)

3M™ 501E is the strongest paper masking tape for industrial applications, specifically designed to operate at elevated temperatures, reaching +160°C for 1 hour. The tape is made of durable brownish-yellow creped paper and coated with a strong rubber adhesive, which ensures secure adhesion even in demanding painting conditions. Its structure allows for precise adaptation to uneven surfaces, enabling accurate masking and resulting in sharp paint lines without paint bleed. It performs excellently in the automotive industry, specialized vehicle production, and other industrial applications requiring high temperature and solvent resistance.

Technical Specification

• Width: 24 mm
• Length: 50 m
• Thickness: 0.15 mm
• Colour: Beige (brownish-yellow)
• Type: Crepe paper tape
• Adhesive: Rubber
• Temperature resistance: Up to +160°C for 1 hour
• Application: Indoor

Application

• Masking during painting of vehicles, machinery, and steel structures
• Painting applications in the automotive industry and specialized production
• Finishing works requiring sharp, aesthetic edges
• Paint curing processes in ovens and heating systems
• Surface protection against paint, dust, moisture, and solvents

Benefits and Features

✅ High temperature resistance – ideal for oven paint curing
✅ Strongest paper tape – reliable masking in demanding conditions
✅ Excellent conformability – adheres to uneven and curved surfaces
✅ Sharp paint lines – no paint bleed and clean finish
✅ Solvent and moisture resistance – durability in intensive use
✅ High adhesion – strong hold without lifting at the edges

Application Tips

Before use, the surface should be thoroughly cleaned and dried. The tape should be applied with adequate pressure, especially along the edges. After the painting and curing process is complete, it is best to remove the tape before the surface has fully cooled to avoid tearing and leaving adhesive residue.
